Adjustable-Center Rotary Broaching Holders
- Ideal for Turning Centers and Machining Centers -

When you have a heavy-duty rotary broaching application, these adjustable center Rotary Broach holders are very capable and built with Swiss precision. Already well known in Europe, PCM®'s Rotary Broach holders are some of the finest available to the machining industry. Capable of making a hex broach anywhere from .040" - 1-1/8", these broach holders have a wide range of capabilities and uses. Ideal for CNC Machining Centers, Turning Centers or Rotary Transfer Machines where center locating is required to get an accurate broach.
Precision Manufactured by PCM® Willen SA of Switzerland

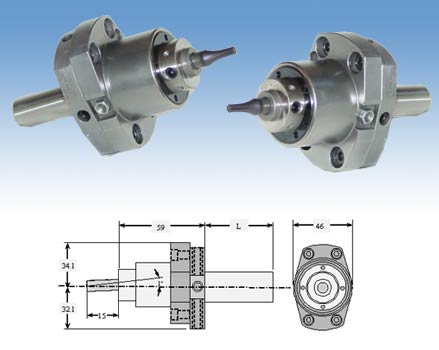

6180 Series Adjustable Center Broach Holder
Broaching Holders with Adjustment

Excellent for Medium to Heavy jobs, the 6180 Series Broach Holder is a great choice for larger model Swiss Type machines or for CNC Turning Centers

Features:

Fully Adjustable in X and Y Axis for easy set-up and quick center locating.

Able to withstand 2700 lbs of thrust force

Low profile grease fitting takes up less space

Comes pre-set for center from Factory for use with PCM® 8mmØ x 28mm OAL broaches.
Broach Holder Without Locking Flat on Shank Broaching Holder With Locking Flat on Shank Ø Shank Dimension "L"
RBH-6180-158
RBH-6181-158
.625"
1.575"
RBH-6180-190
RBH-6181-190
.750"
1.575"
RBH-6180-254
RBH-6181-254
1.00"
1.970"
RBH-6180-317
RBH-6181-317
1.250"
2.365"
RBH-6180-160
RBH-6181-160
16mm
1.575"
RBH-6180-200
RBH-6181-200
20mm
1.575"
RBH-6180-250
RBH-6181-250
25mm
1.970"
RBH-6180-300
RBH-6181-300
30mm
2.365"
RBH-6180-320
RBH-6181-320
32mm
2.365"

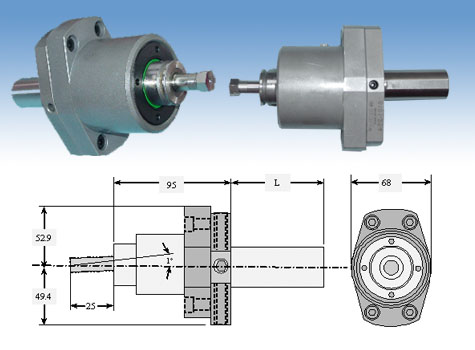

6190 Series Heavy Duty Adjustable Center Broach Holder
heavy duty broach holders from CNC Machines

Our Largest Broach Holder, Ideal for heavy broaching jobs that require hex forms around .500" or larger. An excellent choice for large machining centers and Turning centers.

Features:

Fully Adjustable X and Y Axis for precision center locating

Ultra Heavy-Duty bearing withstands 9000lbs of thrust force. Capable of machining the largest of forms.

Uses 12mm Ø Shank Broach Tools.

Broach Holder Without Locking Flat on Shank Broaching Holder With Locking Flat on Shank Ø Shank Dimension "L"
RBH-6190-254
RBH-6191-254
1.000"
2.165"
RBH-6190-317
RBH-6191-317
1.250"
2.165"
---------------
RBH-6191-381
1.500"
2.165"
---------------
RBH-6191-444
1.750"
2.675"
---------------
RBH-6191-508
2.000"
2.675
RBH-6190-200
RBH-6191-200
20mm
2.165"
RBH-6190-250
RBH-6191-250
25mm
2.165"
RBH-6190-300
RBH-6191-300
30mm
2.165"
RBH-6190-320
RBH-6191-320
32mm
2.165"
---------------
RBH-6191-350
35mm
2.165"
---------------
RBH-6191-400
40mm
2.165"
---------------
RBH-6191-450
45mm
2.675"
---------------
RBH-6191-500
50mm
2.675"
