Genevieve Swiss Industries is the only source of quality compact broaching heads designed for Swiss Type machines. Our rotary broaching heads are the solution to solving tough application problems where confined tool space is an issue. Our on-center, non-adjustable rotary broach holders also save you time with their easy set-up, decreasing machine downtime and increasing productivity. Our Rotary Broach holders feature some of the smallest head dimensions available to the industry! These On-center Rotary Broach Holders are intended for use in Swiss Type Lathes and Gang Style Lathes that are accurate to the work centerline within a few tenths of a thousandth. Capable of creating hex broach forms anywhere from .040" - .375" these broach holders can handle nearly any size required by the Swiss Machinist.

Precision Manufactured by PCM® Willen SA of Switzerland

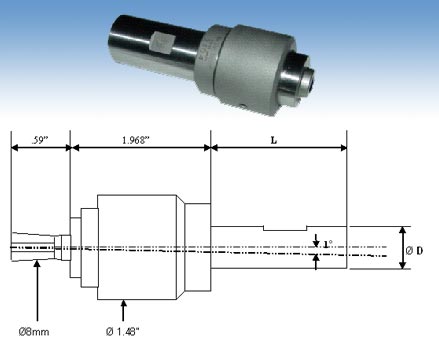

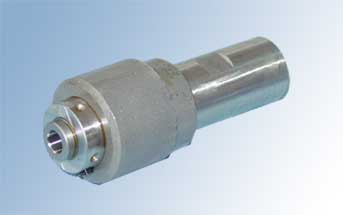

The 2100 Series is a cost effective rotary broach holder that delivers similar results as the 2160 Series. Contains the 1° angle required to obtain the wobble broaching action. Maximum thrust that can be applied on the bearings is less than that of the 2160 series however. On Center and does not require adjustment.

Features:

No Center Indicating Required - Fast Setup

Bearing Design withstands 900lbs of thrust

Economical Solution for Medium Duty applications
