Swiss-Type Broaching Holders for Swiss CNC Lathes

Genevieve Swiss Industries is the only source of quality compact broaching heads designed for Swiss Type machines. Our rotary broaching heads are the solution to solving tough application problems where confined tool space is an issue. Our on-center, non-adjustable rotary broach holders also save you time with their easy set-up, decreasing machine downtime and increasing productivity. Our Rotary Broach holders feature some of the smallest head dimensions available to the industry! These On-center Rotary Broach Holders are intended for use in Swiss Type Lathes and Gang Style Lathes that are accurate to the work centerline within a few tenths of a thousandth. Capable of creating hex broach forms anywhere from .040" - .375" these broach holders can handle nearly any size required by the Swiss Machinist.

Precision Manufactured by PCM® Willen SA of Switzerland

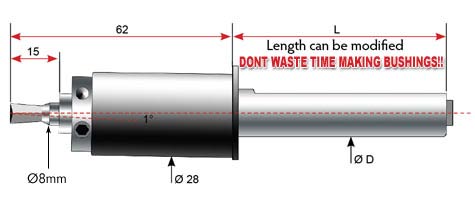

The 2160 Series Holder - The ORIGINAL and BEST CHOICE for Swiss-Type Broaching
Rated to 2250 thrust lbs - Holds 8mm shank 2110 series broaches

The 2160 Series Rotary Broach Holder is our most capable compact Swiss-Style Broach Holder. Able to fit into nearly any tight tooling configuration, The 2160 Broach Holder solves tooling problems and increases productivity by eliminating secondary broach operations.
This broach holder is the Original and Best choice for Rotary Broaching on Swiss type CNC machines. Field proven and used for years by the Medical Implant as well as Aerospace manufacturing industries. Can also be used in vertical machining centers.

Swiss Type Broach Holders D L swiss rotary broach
RBH-2160-158-038
.625"
1.50"
RBH-2160-190-100
.750"
4.00"
RBH-2160-254-120
1.00"
4.75"
RBH-2160-120-038
12mm
38mm
RBH-2160-140-038
14mm
38mm
RBH-2160-160-038
16mm
38mm
RBH-2160-200-100
20mm
100mm
RBH-2160-220-100
22mm
100mm
RBH-2160-250-120
25mm
120mm
swiss type rotary broach the original rotary broach for swiss cnc machines

KEY FEATURES:

  • NO CENTER INDICATING REQUIRED - LIGHTNING FAST SETUP!
  • Heavy Duty Bearing Withstands up to 2250lbs of Thrust Force
  • Longer shank can be sized for your machine and application
  • By eliminating bushings, rigidity is increased, providing increased tool life
  • Low profile grease fitting does not become a chip collecting hazard
  • SWISS-MADE PRECISION PRODUCT
  • BEST CHOICE FOR MEDICAL AND AEROSPACE APPLICATIONS
  • Versatile - Can be used in vertical machining centers
citizen swiss broaching
tsugami swiss broaching
tsugami swiss broaching

"The Original Swiss-Type Rotary Broach Holder" by Genevieve Swiss & PCM® S.A.

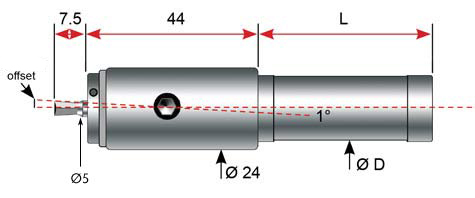

2150 Series - The INDUSTRY'S SMALLEST Rotary Broach Holder - for MICRO BROACHING
Rated to 112 thrust lbs - Holds 5mm shank 2151 series broaches
The industry's smallest Swiss-type rotary broach holder fits into even the smallest of Swiss-type machines. Ideal for use on micro broaching applications such as dental implants where the profile to be achieved is under .080"
Swiss Type Broach Holders D L micro rotary broach
RBH-2150-070
7mm
30mm
RBH-2150-080
8mm
30mm
RBH-2150-010
10mm
30mm
RBH-2150-120
12mm
38mm
RBH-2160-150
15mm
38mm
RBH-2150-160
16mm
38mm
RBH-2150-190
3/4"
1.5"
RBH-2150-220
22mm
75mm
micro rotary broach

**NOTE** Eccentric Spindle Design:
This unit is NOT on center by default. A .454mm offset must be programmed to align the axis of the broach with the axis of the workpiece when broach tool OAL = 13mm. This enables small hole broaching under 2 mm.

Key Features:
- The Swiss machining industry's SMALLEST Rotary Broach Holder
- Ideal for micro broaching applications
- Uses 5mm dia. shank broaches

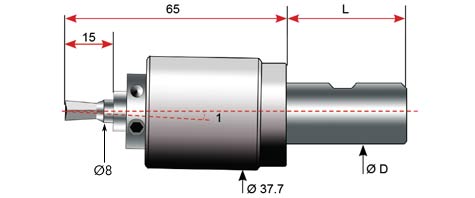

2100 Series Rotary Broach Holder for Swiss Machines
Rated to 900 thrust lbs - Holds 8mm shank 2110 series broaches

The 2100 Series is a cost effective rotary broach holder that delivers similar results as the 2160 Series. Contains the 1° angle required to obtain the wobble broaching action. Maximum thrust that can be applied to the bearings is 900lbs. On Center design that does not require adjustment.
Broach Holder Part No.
D
L
 swiss made rotary broach
RBH-2100-58
.625"
1.5"
RBH-2102
.750"
1.5"
RBH-2104
1.00"
2.28"
RBH-2100-16
16mm
38mm
RBH-2101
20mm
38mm
RBH-2103
25mm
50mm
swiss broaching tools

Features:

- NO CENTER INDICATING REQUIRED - Fast Setup
- Thrust bearing withstands 900lbs of force
- Competitively priced
- Can be used in vertical machining centers
- Uses 2110 Series Broaches
- SWISS MADE PRECISION by PCM® S.A.
